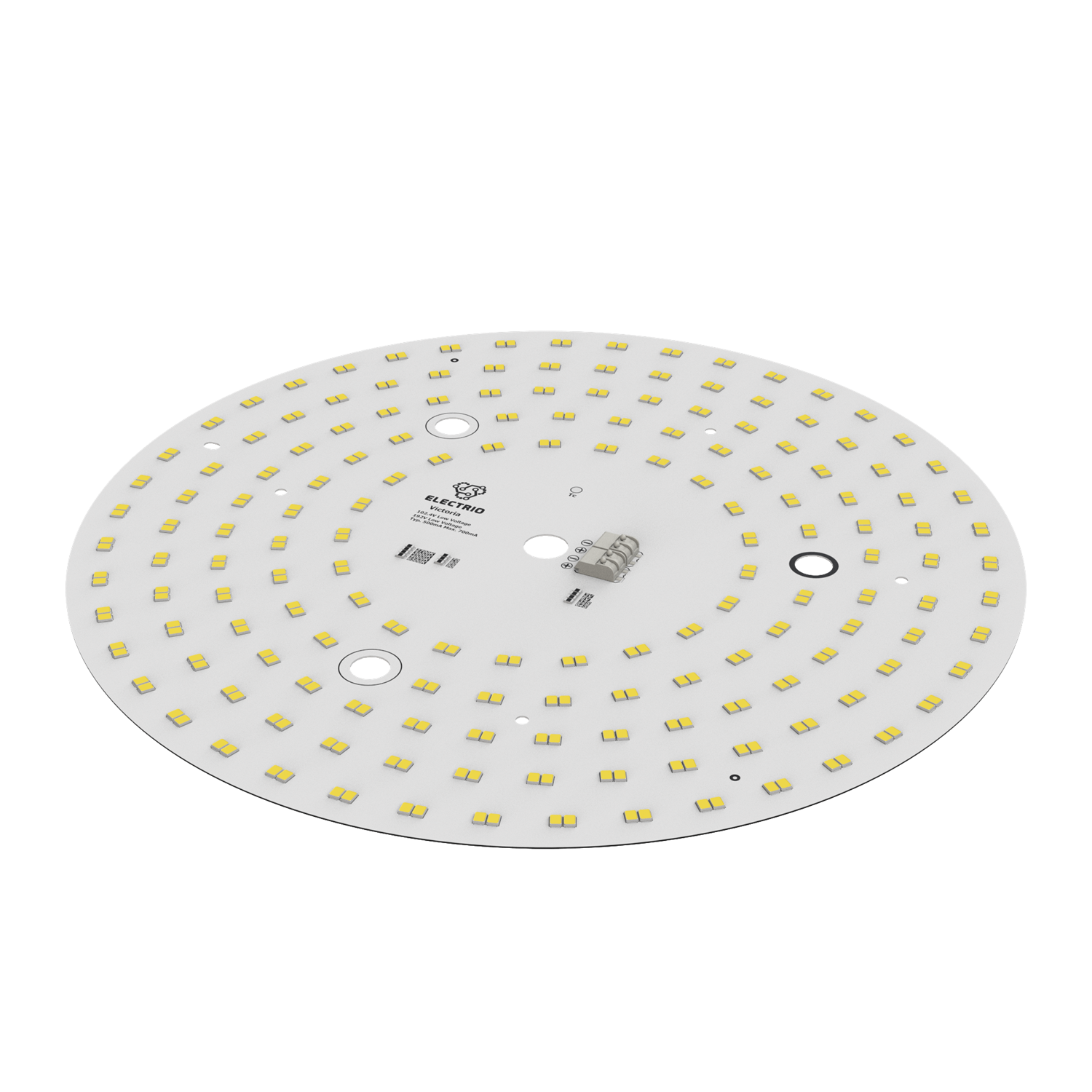

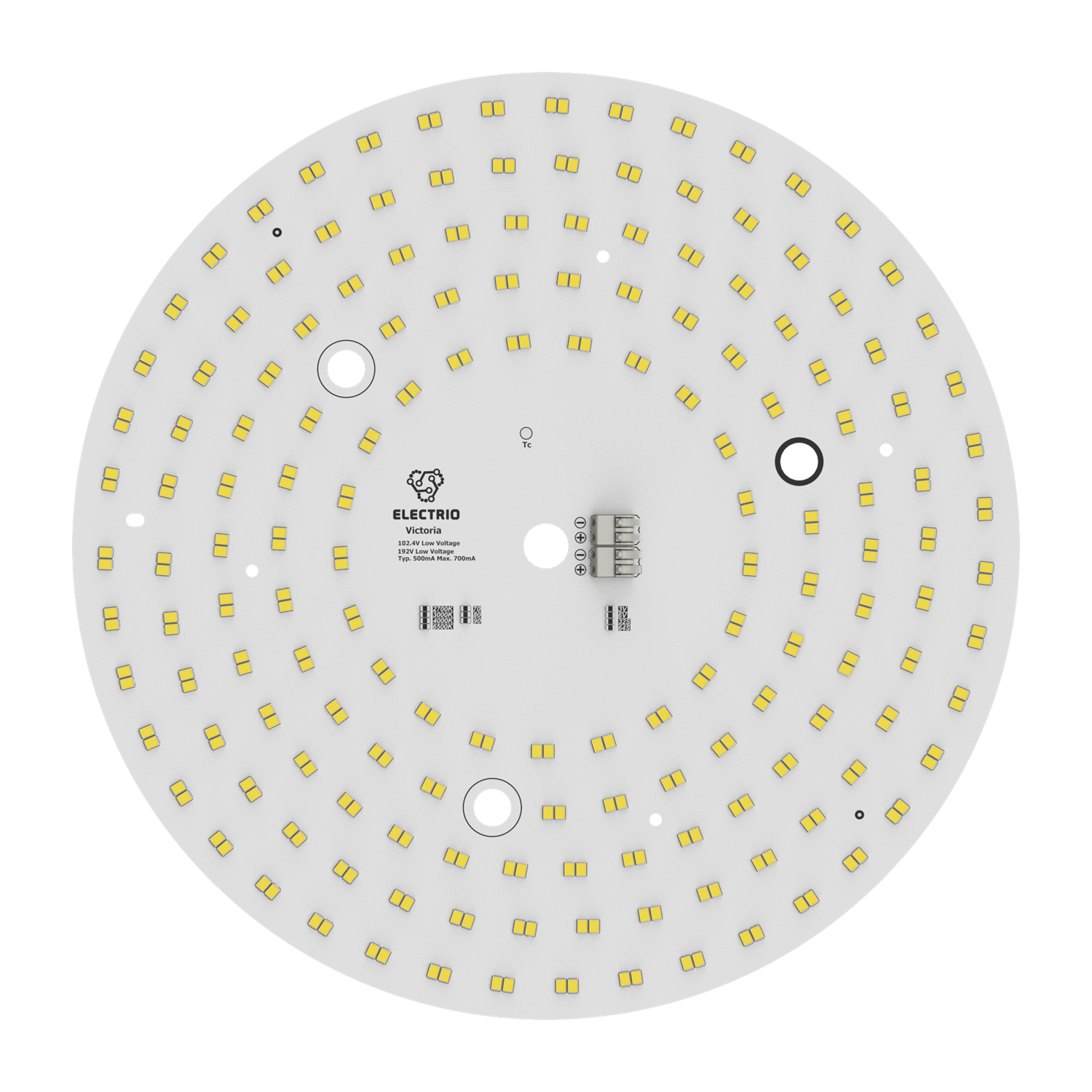

VICTORIA-3210-L128
Stock Code: A001026
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code VICTORIA-3210-L128
PCB Material ALU/FR4
Serial 32 Operating Temperature(°C) -40 ~ +85
Parallel 10 Storage Temperature(°C) -40 ~ +85
LED Quantity 320 Thermal Conductivity(W/m-k) 1W/mk

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 700 1400 2000
Module Operating Voltage (V) 88,64 92,16 95,36
Module Light Output (lm) 11936 22451 30669
Module Power (W) 62,05 129,02 190,72
Module Efficiency (lm/W) 192,4 174,0 160,8
