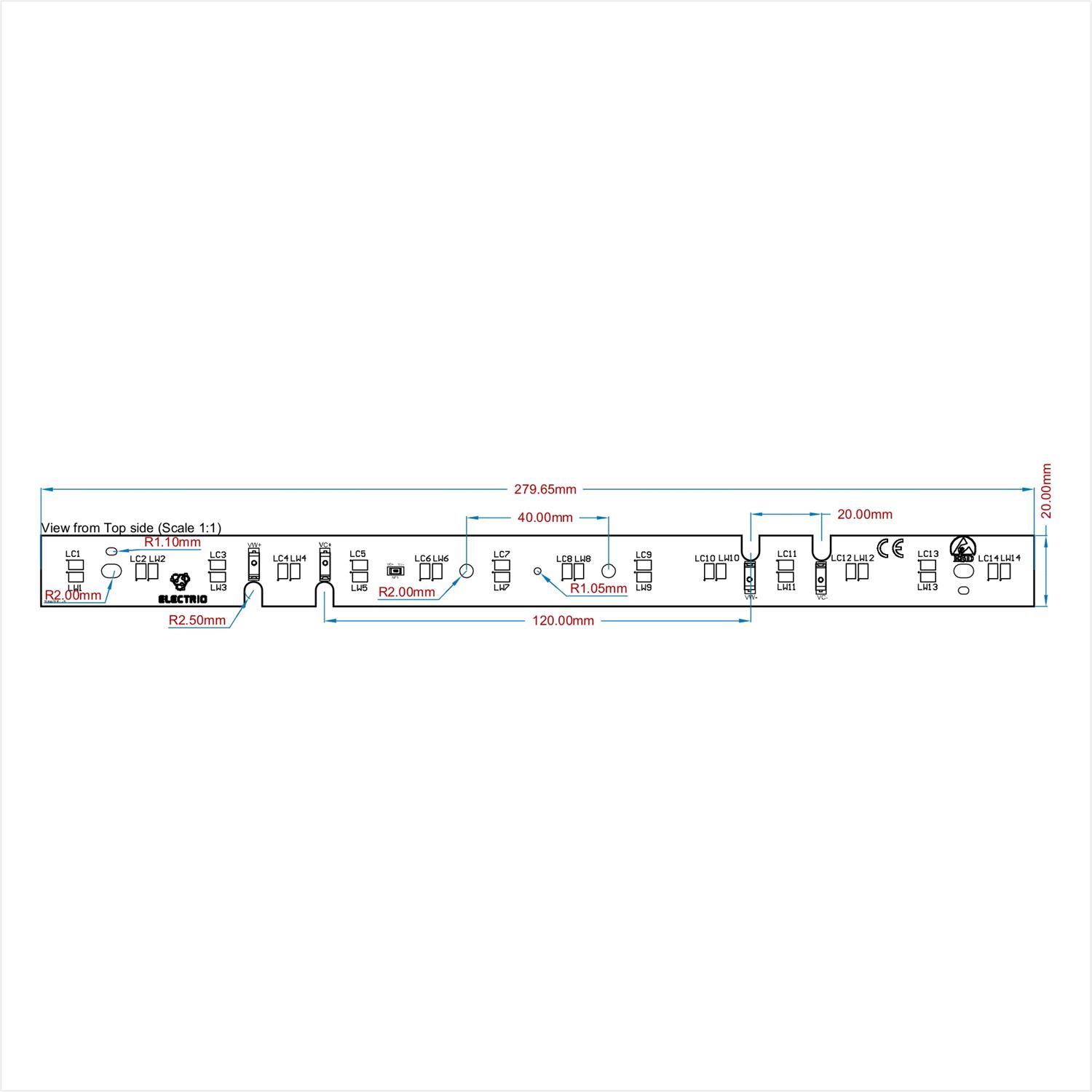

Click for view
DAISY-MINI-1401-L128-TN
Stock Code: A001018
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code DAISY-MINI-1401-L128-TN
PCB Material ALU/FR4/CEM1/CEM3
Serial 14 Operating Temperature(°C) -40 ~ +85
Parallel 1 Storage Temperature(°C) -40 ~ +85
LED Quantity 28 Thermal Conductivity(W/m-k) 1W/mk

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 2700K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 100 150 200
Module Operating Voltage (V) 39,48 40,60 41,72
Module Light Output (lm) 678 981 1267
Module Power (W) 3,95 6,09 8,34
Module Efficiency (lm/W) 171,7 161,1 151,8

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 6500K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 100 150 200
Module Operating Voltage (V) 39,48 40,60 41,72
Module Light Output (lm) 717 1034 1331
Module Power (W) 3,95 6,09 8,34
Module Efficiency (lm/W) 181,6 169,8 159,5
