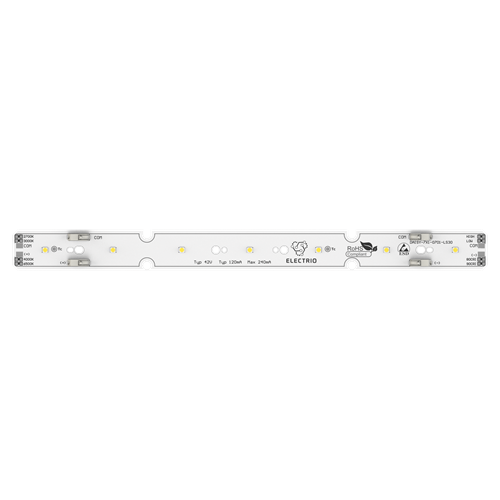

DAISY-7X1-0701-LS30
Stock Code: A001014
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code DAISY-7X1-0701-LS30
PCB Material ALU/FR4/CEM1/CEM3
Serial 7 Operating Temperature(°C) -40 ~ +85
Parallel 1 Storage Temperature(°C) -40 ~ +85
LED Quantity 7 Thermal Conductivity(W/m-k) 1W/mk

LED L130-4080003000X21
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 100 150 240
Module Operating Voltage (V) 41,09 42,84 45,85
Module Light Output (lm) 720 1024 1505
Module Power (W) 4,11 6,43 11,00
Module Efficiency (lm/W) 175,2 159,4 136,8
